Everything You Need to Configure a 10 Server Infrastructure Stack for $50/mo

May 21, 2014

Justin Klemm

Ghost Inspector is an automated web testing tool that helps QA testers and engineers to easily build, edit, and run low-code/no-code web tests. Start a free trial.

We’re excited about a lot here at Ghost Inspector. One of the things we’re most excited about is our server stack — specifically, just how easy and affordable it has been to setup. I remember a time when you had to pay $100+/mo for a physical, dedicated machine at a data center. So to me, being able to instantly boot up $5/mo instances is still mind-boggling!

For that reason, I want to cover some basic configurations so that everyone can get rolling as easily as we did. This article makes some assumptions about your setup, but even if they don’t match exactly what you’re trying to do, there should be some useful tidbits below.

A note on hosting providers: We’ve had an excellent experience with our current host: Digital Ocean. The \$50/mo in the title is based on their current pricing scheme. However, because I want this article to be a “How To” and not a specific vendor promotion, I’m going to try to keep things as generic as possible. These instructions could be used at AWS, Linode, or any other provider.

A note on security and configuration: I’m covering a lot here and smoothing over some of the nitty gritty. If you’re planning to put together a real production stack, I encourage you to research each of these steps further so that you understand the security, performance and configuration settings across the entire setup.

Ok, let’s get started.

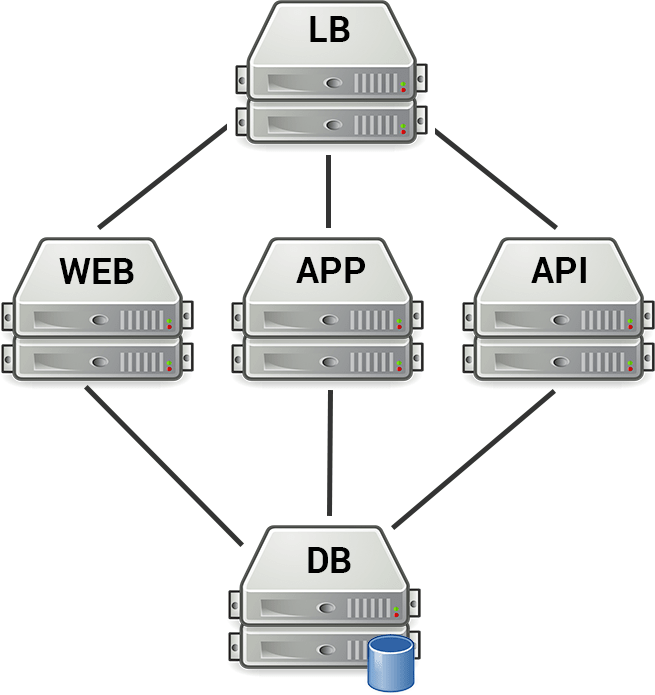

What does the stack look like?

We’re going to have a promotional website (like the one you’re on right now), a web application, and an API. Those will be the 3 publicly accessible areas of our service, and we’ll need a group of servers for each of them. We’ll call them web, app and api. All of these servers will be interacting with our data, so we’ll need at least one database server. We’ll call that db. Lastly, we need to route public requests to the proper server. In other words, we need a load balancer. We’ll call it lb.

Ok, so we’ve got 5 server groups: web, app, api, db and lb. We want performance and redundancy across the board, so each group will have 2 servers. This gives us a total of 10 servers and an infrastructure that looks like this:

Let’s give these servers some hostnames:

lb-01.yourservice.com
lb-02.yourservice.com
db-01.yourservice.com
db-02.yourservice.com
web-01.yourservice.com
web-02.yourservice.com
app-01.yourservice.com
app-02.yourservice.com
api-01.yourservice.com
api-02.yourservice.com

Hardware & Software Needs

Everyone’s needs (and preferences) are going to vary. On the hardware side, a Linux instance with 512MB RAM will work for each of our 10 servers. Your actual needs may require something beefier.

On the software side, we’re going to opt for CentOS 6.5. This is purely a comfort-level decision. If you’re comfortable with Ubuntu, or some other distro, go with that. I’m sure the “yum” commands below could be ported over to “apt-get” commands and the configuration file locations could be easily tracked down.

Step #1 – Creating Our Base Snapshot

Most hosting providers offer you some kind of snapshot functionality. We’re going to configure our base system with the tools that all our of servers will need, then take a snapshot and use it as the base for each type of instance. Go ahead and create yourself an instance. You’ll want to login in with the root account, then immediately change the password.

Create a User Account with Sudo Privileges

It’s best to stay out of your root account, so I’d suggest creating a user account for yourself at this point and giving it sudo access. If you plan on using a private key for access (recommended), you should also set that up now. If you switch over to that user account at this point, most of the commands below will need a sudo in front.

Update Yum and Install Development Tools

$ yum check-update
$ yum -y update
$ yum -y groupinstall "Development Tools"

Enable the Firewall

We’re going to use IPTables to lock down everything except port 22 (for SSH) and pings by default. The configuration file can be found at /etc/sysconfig/iptables. Here’s what our’s looks like:

*filter
:FORWARD DROP [0:0]
:INPUT DROP [0:0]
:OUTPUT ACCEPT [0:0]
-A INPUT -i lo -j ACCEPT
-A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
-A INPUT -p icmp -j ACCEPT
-A INPUT -p tcp -m tcp --dport 22 -j ACCEPT
COMMIT

Once you make your changes, you’ll need to restart IPTables:

$ service iptables restart

Turn Off Postfix

Postfix is a mail server that’s running by default on CentOS. I prefer to send any email using an outside service like Mandrill, so I opt to shut this service down. You can leave it running, if you prefer.

$ service postfix stop
$ chkconfig postfix off

That’s it for our initial base install. At this point, you can take a snapshot and move on to setting up specific machines.

Step #2 – Setting Up Our Database Server

Obviously database types can vary. For this article, we’re actually going to use 2 different types: MySQL (for our promotional site running WordPress) and MongoDB (for our application).

Install MySQL

The commands below will install MySQL, start it up, and set it to run when the system boots.

$ yum -y install mysql-server
$ service mysqld start
$ chkconfig mysqld on

Now we need to set a password on the root account.

$ /usr/bin/mysqladmin -u root password '[PASSWORD-HERE]'

You should replace [PASSWORD-HERE] above with a secure password. You’ll also need to setup a user and database for the WordPress site to use. That process should look something like this:

$ mysql -u root -p
Enter password: [ROOT-PASSWORD-HERE]
mysql> CREATE DATABASE `wordpress`;
mysql> CREATE USER 'wordpress'@'%' IDENTIFIED BY '[PASSWORD-HERE]';
mysql> GRANT ALL PRIVILEGES ON `wordpress`.* TO 'wordpress'@'%' WITH GRANT OPTION;
mysql> quit;

Again, [PASSWORD-HERE] should be replaced with your new user’s password. The commands above give the name “wordpress” to both the user and the database. You can change that, if you’d like. You can also change 'wordpress'@'%' and pin it down to just the IP address of your web servers, but we’ll be limiting access in the firewall anyway.

Install MongoDB

Weirdly, CentOS still doesn’t have MongoDB in its yum repos, so we need to add it (official instructions). You need to create the file /etc/yum.repos.d/mongodb.repo and add this to it:

[mongodb]
name=MongoDB Repository
baseurl=http://downloads-distro.mongodb.org/repo/redhat/os/x86_64/
gpgcheck=0
enabled=1

Save the file and we’re good to go. Now we can install Mongo, start it up, and configure it to run at boot.

$ yum -y install mongodb-org
$ service mongod start
$ chkconfig mongod on

If you want to enable authentication, please refer to the MongoDB Manual.

Configure Firewall

The last step is updating the firewall. We need to give the web servers access to MySQL and the rest of the machines access to MongoDB. We can update our /etc/sysconfig/iptables file like so:

*filter
:FORWARD DROP [0:0]
:INPUT DROP [0:0]
:OUTPUT ACCEPT [0:0]
-A INPUT -i lo -j ACCEPT
-A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
-A INPUT -p icmp -j ACCEPT
-A INPUT -p tcp -m tcp --dport 22 -j ACCEPT
-A INPUT -p tcp -m tcp -s [WEB-01-IP] --dport 3306 -j ACCEPT
-A INPUT -p tcp -m tcp -s [WEB-02-IP] --dport 3306 -j ACCEPT
-A INPUT -p tcp -m tcp -s [APP-01-IP] --dport 27017 -j ACCEPT
-A INPUT -p tcp -m tcp -s [APP-02-IP] --dport 27017 -j ACCEPT
-A INPUT -p tcp -m tcp -s [API-01-IP] --dport 27017 -j ACCEPT
-A INPUT -p tcp -m tcp -s [API-02-IP] --dport 27017 -j ACCEPT
COMMIT

Note that all the [XXX-##-IP] strings above need to be replaced with the IP addresses for those actual servers. Now we restart the firewall.

$ service iptables restart

Setup Replication

We’ve setup our first database server. However, we want redundancy, so we’ve allocated a second instance. My suggestion is to duplicate the first database machine we just set up to create db-02, then follow tutorials for MySQL replication. and MongoDB replication. The full details of replication are bit beyond the scope of this tutorial, however there are great resources available. Note that you’ll likely need to add additional rules to the firewalls of your database machines so they can communicate.

Step #3 – Setting Up Our Load Balancer

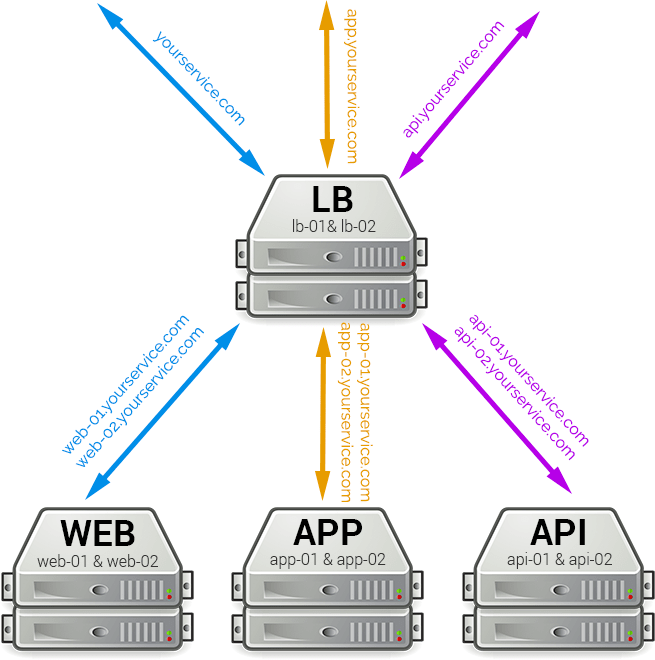

We’ll setup our load balancer next because that’ll give us a good picture of how this stack is going to operate. Again, we’re going to have 3 public facing areas of our product: the promotion website, the application, and the API. Let’s assume that they’ll be accessed at these domains:

http://yourservice.com (Promotional website)
http://app.yourservice.com (Application)
http://api.yourservice.com (API)

All 3 of these domains will point to our load balancer, which will then split the traffic amongst our servers, like so:

Install Nginx

We’re going to use Nginx and the ngx_http_upstream_module module to accomplish this.

Like MongoDB, Nginx does not come packaged with CentOS so we’ll need add the repo for it first (official instructions). Create the file /etc/yum.repos.d/nginx.repo and add the following contents:

[nginx]
name=nginx repo
baseurl=http://nginx.org/packages/centos/6/$basearch/
gpgcheck=0
enabled=1

Now we can install Nginx with yum.

$ yum -y install nginx

We’ll start it up and set it run when the server boots.

$ service nginx start
$ chkconfig nginx on

Ok, let’s configure Nginx to accept and distribute traffic for our domains. We’ll add a configure file at /etc/nginx/conf.d/lb.conf. Rather than explaining each step, I’ve added comments to the contents of the file:

# Configuration for directing web traffic
upstream web {
    # Split web traffic between our two web servers
    server web-01.yourservice.com;
    server web-02.yourservice.com;
}

# Accept traffic from yourservice.com
server {
    listen 80;
    server_name yourservice.com;
    access_log /var/log/nginx/yourservice.com.access.log main;

    # Forward traffic to the "web" configuration above
    location / {
        proxy_read_timeout 120;
        proxy_connect_timeout 120;
        proxy_set_header Host $host;
        proxy_pass http://web;
    }
}


# Configuration for directing app traffic
upstream app {
    # Split app traffic between our two app servers
    server app-01.yourservice.com:3000;
    server app-02.yourservice.com:3000;
}

# Accept traffic from app.yourservice.com
server {
    listen 80;
    server_name app.yourservice.com;
    access_log /var/log/nginx/app.yourservice.com.access.log main;

    # Forward traffic to the "app" configuration above
    location / {
        proxy_read_timeout 120;
        proxy_connect_timeout 120;
        proxy_set_header Host $host;
        proxy_pass http://app;
    }
}


# Configuration for directing api traffic
upstream api {
    # Split api traffic between our two api servers
    server api-01.yourservice.com:3000;
    server api-02.yourservice.com:3000;
}

# Accept traffic from api.yourservice.com
server {
    listen 80;
    server_name api.yourservice.com;
    access_log /var/log/nginx/api.yourservice.com.access.log main;

    # Forward traffic to the "api" configuration above
    location / {
        proxy_read_timeout 120;
        proxy_connect_timeout 120;
        proxy_set_header Host $host;
        proxy_pass http://api;
    }
}

As you can see, we have blocks for web, app and api. Each accepts traffic on the appropriate domain then sends it to the upstream block above which splits it between the servers. We need to restart Nginx to activate these changes.

$ service nginx restart

Configure Firewall

Lastly, we need to open up port 80 on our load balancer’s firewall so we can accept incoming HTTP requests. You can update /etc/sysconfig/iptables as we have below (by adding the port 80 line).

*filter
:FORWARD DROP [0:0]
:INPUT DROP [0:0]
:OUTPUT ACCEPT [0:0]
-A INPUT -i lo -j ACCEPT
-A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
-A INPUT -p icmp -j ACCEPT
-A INPUT -p tcp -m tcp --dport 22 -j ACCEPT
-A INPUT -p tcp -m tcp --dport 80 -j ACCEPT
COMMIT

Once you save, you need to restart IPTables:

$ service iptables restart

Once we have this server fully configured, we’ll want to clone it to create lb-02.

Step #4 – Setting Up Our Promotional Website Servers

Remember that we’re going to have 2 (load balanced) web servers here. We’ll configure one, then duplicate it via our hosting tools. We’re going to be using WordPress, so we’ll need to install PHP and Nginx.

Install PHP

CentOS still comes with an older 5.3.x version of PHP. I prefer to install 5.4.x from the webtatic.com repo. You’ll need to run this command to setup that repo:

$ rpm -Uvh http://mirror.webtatic.com/yum/el6/latest.rpm

You can stick with the 5.3 default installation, or install 5.5, if you’d like. Using the repo above, we’ll install PHP and some additional extensions like this:

$ yum -y install php54w php54w-fpm php54w-gd php54w-mysql php54w-pdo php54w-xml

We’re going to process PHP files with PHP’s FPM module which will communicate with Nginx. We need to start that up and set it to run at boot.

$ service php-fpm start
$ chkconfig php-fpm on

Install Nginx

Now let’s install Nginx. Just as we did on the load balancer, we need add the repo for it first (official instructions). Create the file /etc/yum.repos.d/nginx.repo and add the following contents:

[nginx]
name=nginx repo
baseurl=http://nginx.org/packages/centos/6/$basearch/
gpgcheck=0
enabled=1

Now we can install Nginx with yum.

$ yum -y install nginx

We’ll start it up and set it run when the server boots.

$ service nginx start
$ chkconfig nginx on

Before we configure Nginx, we’ll want to setup the website files. For this article, we’ll be using WordPress. At this point, you can grab a copy of the software and place it on your server. Where you do this is up to you. For the configuration below, I’m going to assume that you place it in /var/www/html. I won’t walk through the specifics of installing WordPress, but you will need to use the MySQL database connection information from the database section above in your wp-config.php file.

Ok, WordPress is installed. Now we need to configure our domain and enable the php-fpm module. Create the file /etc/nginx/conf.d/web.conf and add the contents below.

# Listen for yourservice.com requests (forwarded from load balancer)
server {
    listen       80;
    server_name  yourservice.com;
    access_log   /var/log/nginx/yourservice.com.access.log main;
    root         /var/www/html;
    index        index.php index.html;

    # Pass the PHP scripts to PHP FPM on port 9000
    location ~ \.php$ {
        try_files $uri =404;
        fastcgi_pass   127.0.0.1:9000;
        fastcgi_index  index.php;
        fastcgi_param  SCRIPT_FILENAME $document_root$fastcgi_script_name;
        fastcgi_param  SCRIPT_NAME $fastcgi_script_name;
        include        fastcgi_params;
    }
}

The configuration above accepts requests for yourservice.com and serves up your WordPress setup. The block at the bottom tells Nginx to filter all .php files through the php-fpm service. Let’s restart Nginx to activate it.

$ service nginx restart

At this point, it’s a good idea to poke around both your PHP and Nginx configurations to ensure that they are optimal. There are lots of tweaks that can be implemented on the Nginx side, like gzipping or adding rewrite functionality for WordPress. I’m not going to cover those tweaks here, but I encourage you to research and experiment.

Configure Firewall

As was the case with our load balancer, we need to open up port 80 on the firewall so the server can accept incoming HTTP requests. You can update /etc/sysconfig/iptables as we have below (by adding the port 80 line).

*filter
:FORWARD DROP [0:0]
:INPUT DROP [0:0]
:OUTPUT ACCEPT [0:0]
-A INPUT -i lo -j ACCEPT
-A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
-A INPUT -p icmp -j ACCEPT
-A INPUT -p tcp -m tcp --dport 22 -j ACCEPT
-A INPUT -p tcp -m tcp --dport 80 -j ACCEPT
COMMIT

Once you save, you need to restart IPTables:

$ service iptables restart

Once we have this server fully configured, we’ll want to clone it to create web-02.

Step #5 – Setting Up Our Application Servers

We’ll have 2 load balanced application servers, so again, I prefer to configure one, then duplicate it. There’s not a whole lot of specifics that I can give you in this step, so I will try to generalize.

You’ll want to use your base snapshot to create a new instance, then install any necessary software. Perhaps it’s a NodeJS app. Maybe it’s written in Python. This step assumes you’re capable of installing the necessary software and loading up your application.

Once your application is installed, you can configure it to use db-01.yourservice.com and db-02.yourservice.com (the database servers we setup above). You’ll also want to configure the app to listen on port 3000, since we’ve configured our load balancers to forward requests there.

The last step will be to open up port 3000 so that the load balancers can access it. You can update /etc/sysconfig/iptables as we have below where [LB-01-IP] is your load balancers’ IP addresses.

*filter
:FORWARD DROP [0:0]
:INPUT DROP [0:0]
:OUTPUT ACCEPT [0:0]
-A INPUT -i lo -j ACCEPT
-A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
-A INPUT -p icmp -j ACCEPT
-A INPUT -p tcp -m tcp --dport 22 -j ACCEPT
-A INPUT -p tcp -m tcp -s [LB-01-IP] --dport 3000 -j ACCEPT
-A INPUT -p tcp -m tcp -s [LB-02-IP] --dport 3000 -j ACCEPT
COMMIT

Once you save, you need to restart IPTables:

$ service iptables restart

Now that all your setup and configuration is done, you can duplicate your instance so that you have app-01.yourservice.com and app-02.yourservice.com running your application on port 3000 — just as we specified in the load balancer.

Step #6 – Setting Up Our API Servers

This step is exactly like the step above, only this time, you’re setting up your API application. As specified in the load balancer section, we’ll have 2 instances running our API server at api-01.yourservice.com and api-02.yourservice.com. The API server will listen on port 3001. Once you’ve got your API servers up and running, you need to give the load balancers access, just as we did in the step above. Make sure you open port 3001 this time, instead of port 3000.

Flip the Switch. Bring it to Life.

We’re done! You just need to point the yourservice.com, app.yourservice.com and api.yourservice.com domains to your load balancers’ IP addresses to make the service accessible. You’ll want to add two DNS records for this — one to each load balancer. This ensures redundancy.

If you’ve been following along step by step, your infrastructure should be ready to go — and by “ready to go”, I mean that the basics are in place and you likely have lots of tweaking and testing to do.

If you run into any problems along the way, please use the comment section below and we’ll try to give you a hand. Good luck!

Cookie	Duration	Description
__cfruid	session	Cloudflare sets this cookie to identify trusted web traffic.
__hssc	1 hour	HubSpot sets this cookie to keep track of sessions and to determine if HubSpot should increment the session number and timestamps in the __hstc cookie.
__hssrc	session	This cookie is set by Hubspot whenever it changes the session cookie. The __hssrc cookie set to 1 indicates that the user has restarted the browser, and if the cookie does not exist, it is assumed to be a new session.
_cfuvid	session	Calendly sets this cookie to track users across sessions to optimize user experience by maintaining session consistency and providing personalized services
cookielawinfo-checkbox-advertisement	1 year	Set by the GDPR Cookie Consent plugin, this cookie records the user consent for the cookies in the "Advertisement" category.
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
CookieLawInfoConsent	1 year	CookieYes sets this cookie to record the default button state of the corresponding category and the status of CCPA. It works only in coordination with the primary cookie.
elementor	never	The website's WordPress theme uses this cookie. It allows the website owner to implement or change the website's content in real-time.
intercom-device-id-*	8 months 26 days 1 hour	Intercom sets this cookie that allows visitors to see any conversations they've had on Intercom websites.
intercom-id-*	8 months 26 days 1 hour	Intercom sets this cookie that allows visitors to see any conversations they've had on Intercom websites.
intercom-session-*	7 days	Intercom sets this cookie that allows visitors to see any conversations they've had on Intercom websites.
JSESSIONID	session	New Relic uses this cookie to store a session identifier so that New Relic can monitor session counts for an application.
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.
wpEmojiSettingsSupports	session	WordPress sets this cookie when a user interacts with emojis on a WordPress site. It helps determine if the user's browser can display emojis properly.

Cookie	Duration	Description
__cf_bm	30 minutes	Cloudflare set the cookie to support Cloudflare Bot Management.
yt-remote-cast-available	session	The yt-remote-cast-available cookie is used to store the user's preferences regarding whether casting is available on their YouTube video player.
yt-remote-cast-installed	session	The yt-remote-cast-installed cookie is used to store the user's video player preferences using embedded YouTube video.
yt-remote-fast-check-period	session	The yt-remote-fast-check-period cookie is used by YouTube to store the user's video player preferences for embedded YouTube videos.
yt-remote-session-app	session	The yt-remote-session-app cookie is used by YouTube to store user preferences and information about the interface of the embedded YouTube video player.
yt-remote-session-name	session	The yt-remote-session-name cookie is used by YouTube to store the user's video player preferences using embedded YouTube video.
ytidb::LAST_RESULT_ENTRY_KEY	never	The cookie ytidb::LAST_RESULT_ENTRY_KEY is used by YouTube to store the last search result entry that was clicked by the user. This information is used to improve the user experience by providing more relevant search results in the future.

Cookie	Duration	Description
__hstc	6 months	Hubspot set this main cookie for tracking visitors. It contains the domain, initial timestamp (first visit), last timestamp (last visit), current timestamp (this visit), and session number (increments for each subsequent session).
_ga	1 year 1 month 4 days	Google Analytics sets this cookie to calculate visitor, session and campaign data and track site usage for the site's analytics report. The cookie stores information anonymously and assigns a randomly generated number to recognise unique visitors.
_ga_*	1 year 1 month 4 days	Google Analytics sets this cookie to store and count page views.
_gat_UA-*	1 minute	Google Analytics sets this cookie for user behaviour tracking.n
_gcl_au	3 months	Google Tag Manager sets the cookie to experiment advertisement efficiency of websites using their services.
_gid	1 day	Google Analytics sets this cookie to store information on how visitors use a website while also creating an analytics report of the website's performance. Some of the collected data includes the number of visitors, their source, and the pages they visit anonymously.
ajs_anonymous_id	1 year	This cookie is set by Segment to count the number of people who visit a certain site by tracking if they have visited before.
ajs_user_id	never	This cookie is set by Segment to help track visitor usage, events, target marketing, and also measure application performance and stability.
CONSENT	2 years	YouTube sets this cookie via embedded YouTube videos and registers anonymous statistical data.
hubspotutk	6 months	HubSpot sets this cookie to keep track of the visitors to the website. This cookie is passed to HubSpot on form submission and used when deduplicating contacts.
mp_*_mixpanel	1 year	Mixpanel sets this cookie to determine how users use the website so that a good user experience can be provided.
vuid	1 year 1 month 4 days	Vimeo installs this cookie to collect tracking information by setting a unique ID to embed videos on the website.

Cookie	Duration	Description
IDE	1 year 24 days	Google DoubleClick IDE cookies store information about how the user uses the website to present them with relevant ads according to the user profile.
test_cookie	15 minutes	doubleclick.net sets this cookie to determine if the user's browser supports cookies.
VISITOR_INFO1_LIVE	5 months 27 days	YouTube sets this cookie to measure bandwidth, determining whether the user gets the new or old player interface.
YSC	session	Youtube sets this cookie to track the views of embedded videos on Youtube pages.
yt-remote-connected-devices	never	YouTube sets this cookie to store the user's video preferences using embedded YouTube videos.
yt-remote-device-id	never	YouTube sets this cookie to store the user's video preferences using embedded YouTube videos.
yt.innertube::nextId	never	YouTube sets this cookie to register a unique ID to store data on what videos from YouTube the user has seen.
yt.innertube::requests	never	YouTube sets this cookie to register a unique ID to store data on what videos from YouTube the user has seen.

Cookie	Duration	Description
_slides_app_session	session	Description is currently not available.
cf_clearance	1 year	Description is currently not available.
loglevel	never	No description available.
VISITOR_PRIVACY_METADATA	5 months 27 days	Description is currently not available.
